Orion

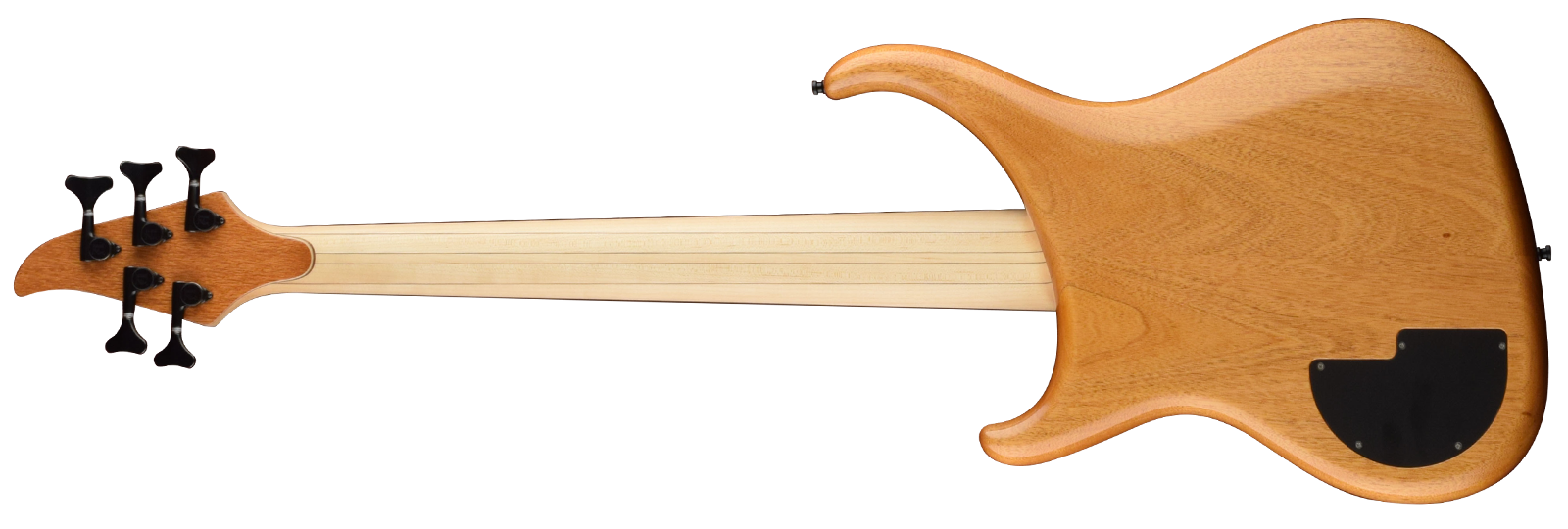

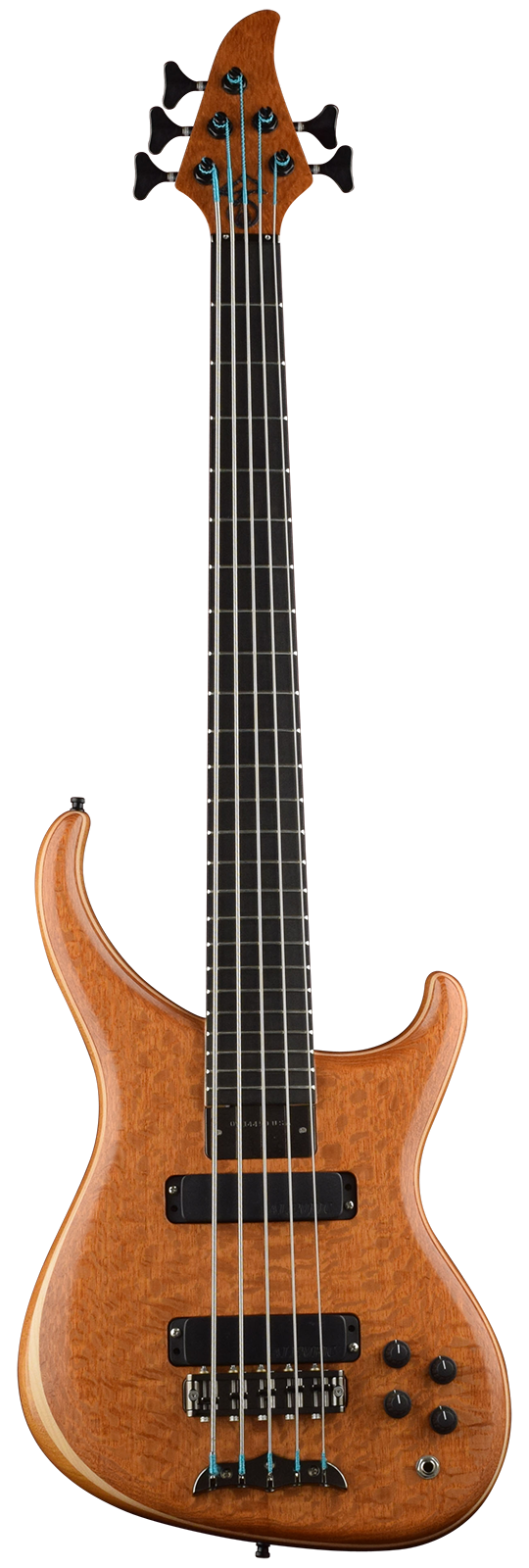

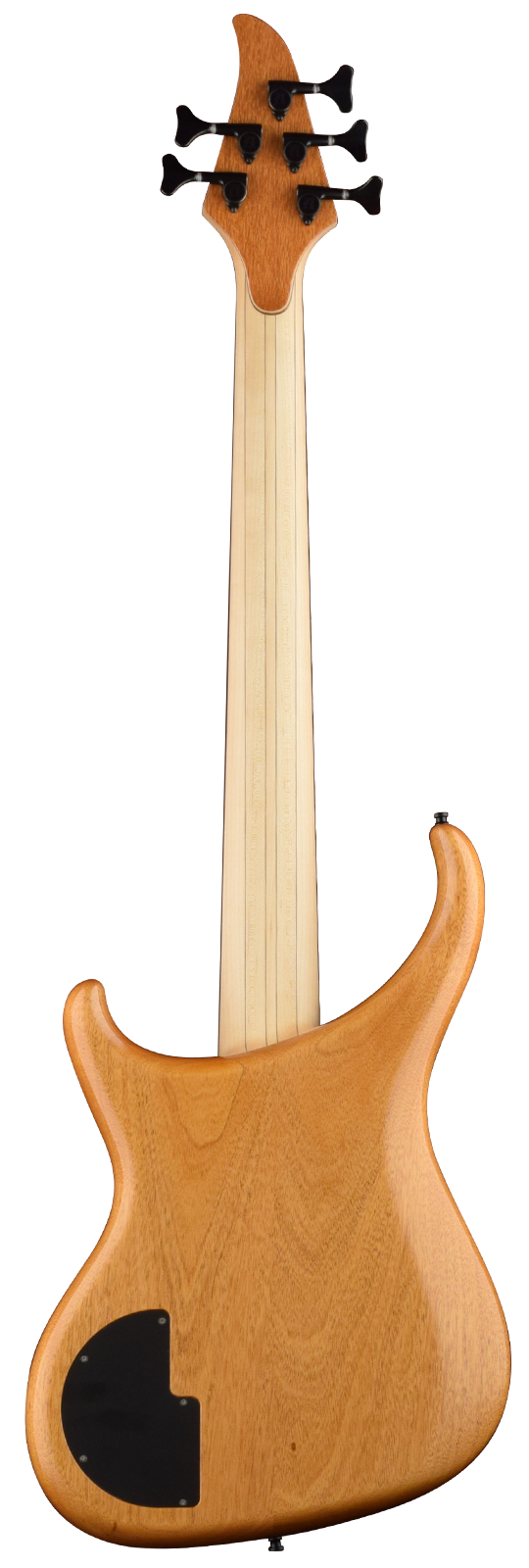

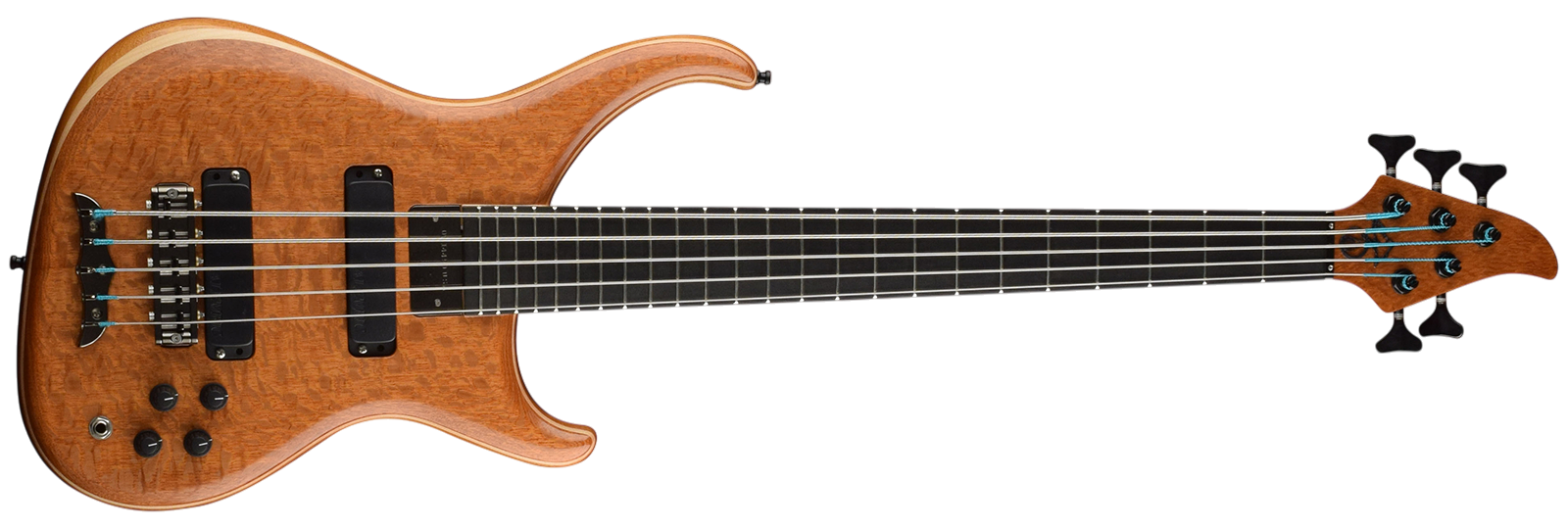

Orion bass front Orion bass back
Orion bass back Orion bass front

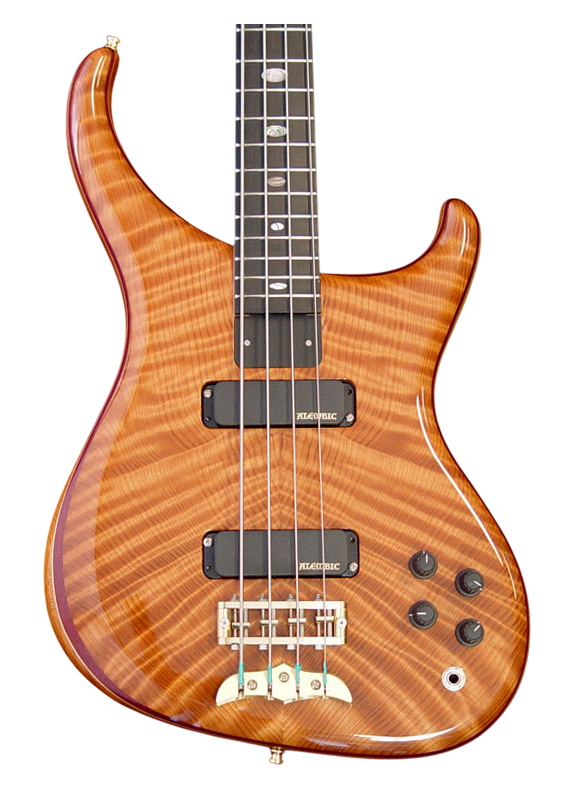

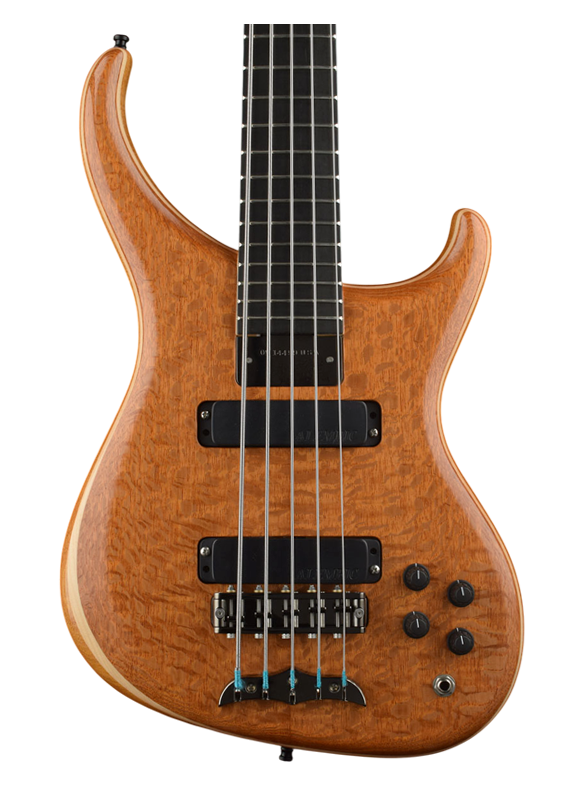

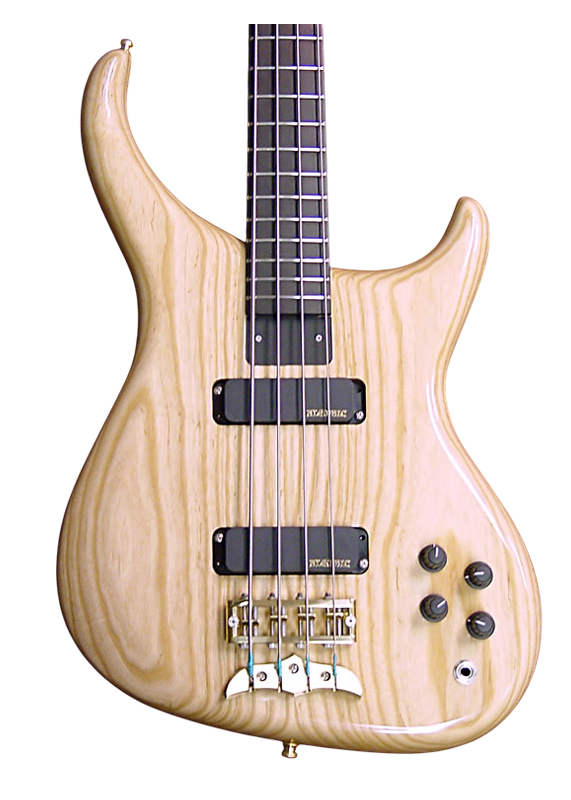

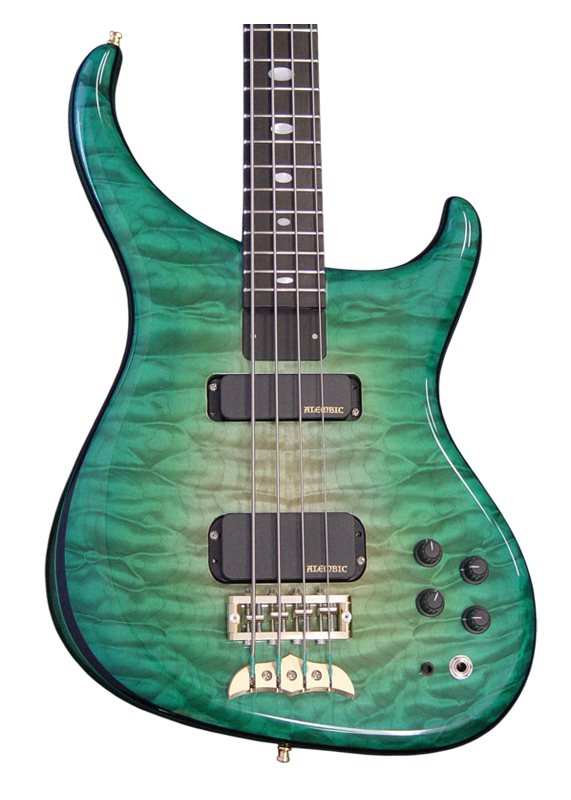

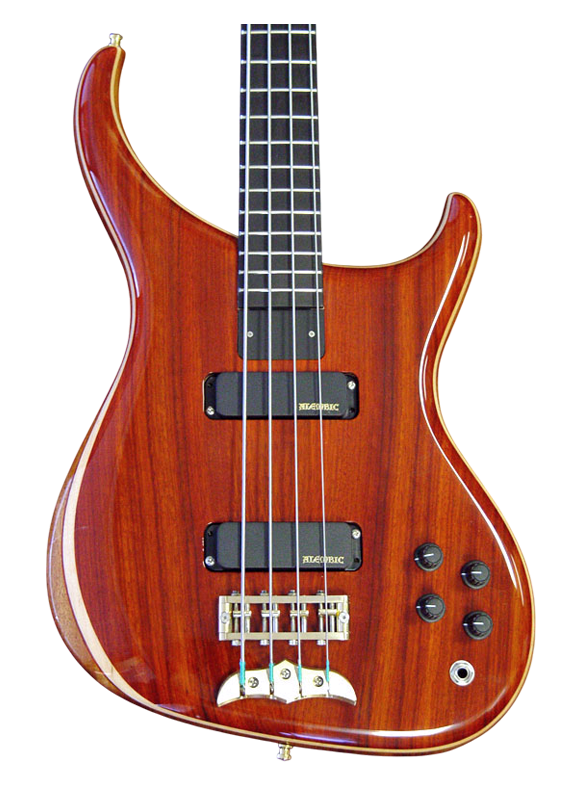

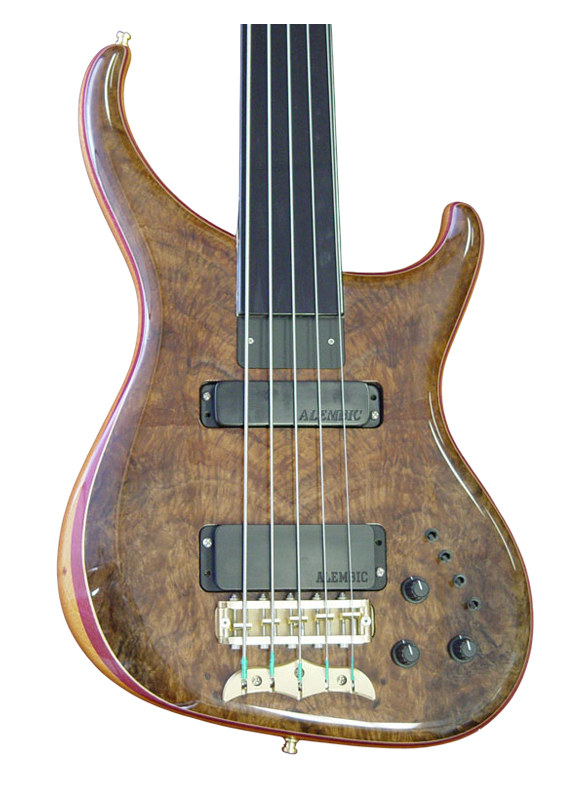

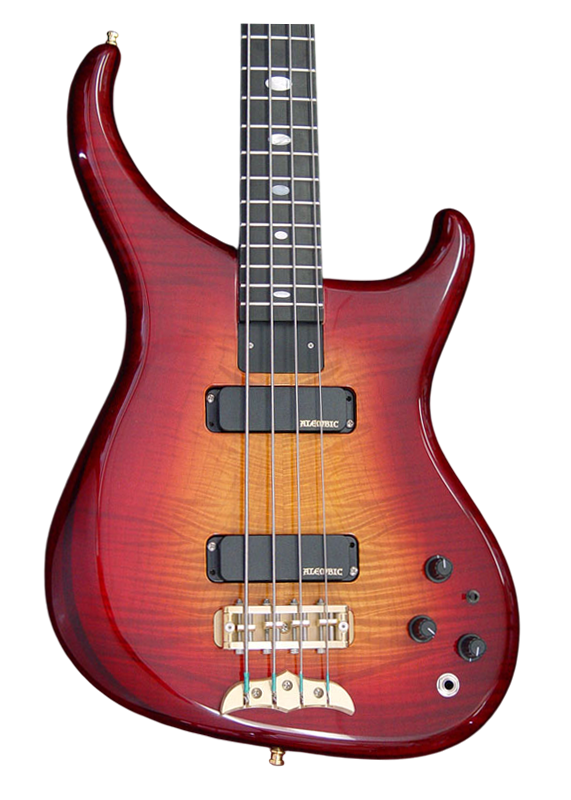

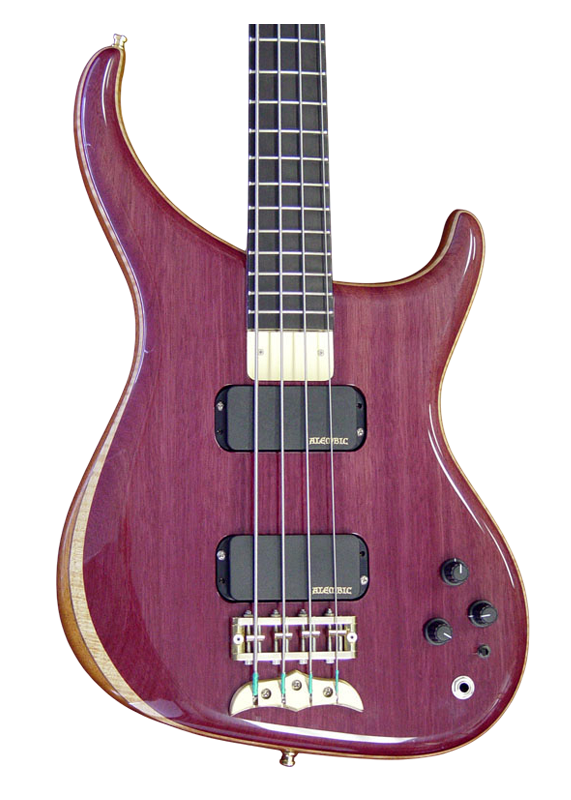

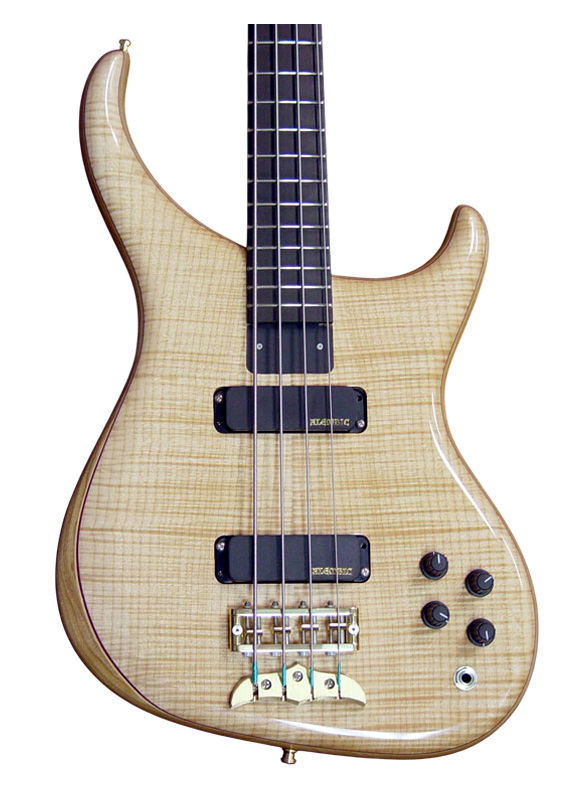

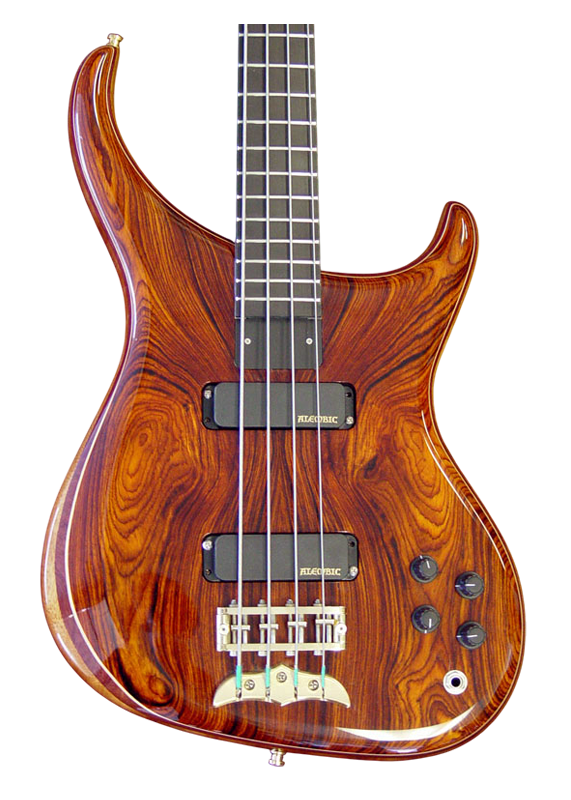

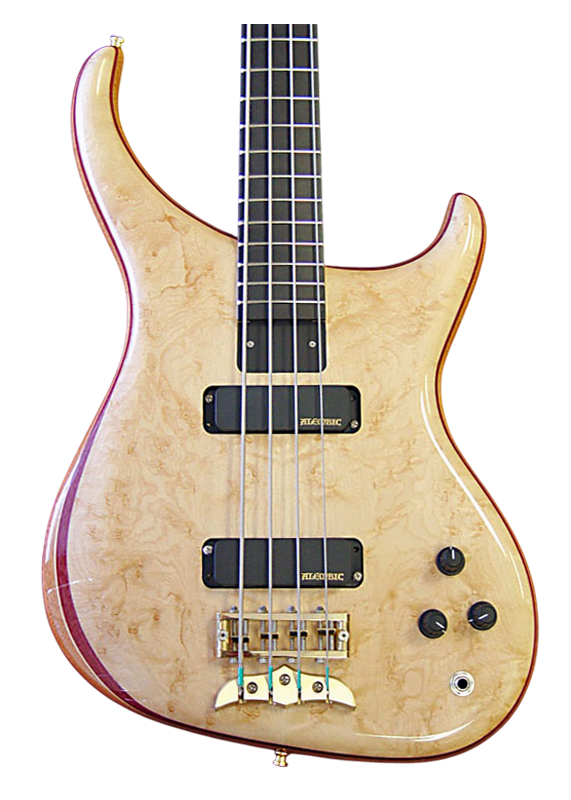

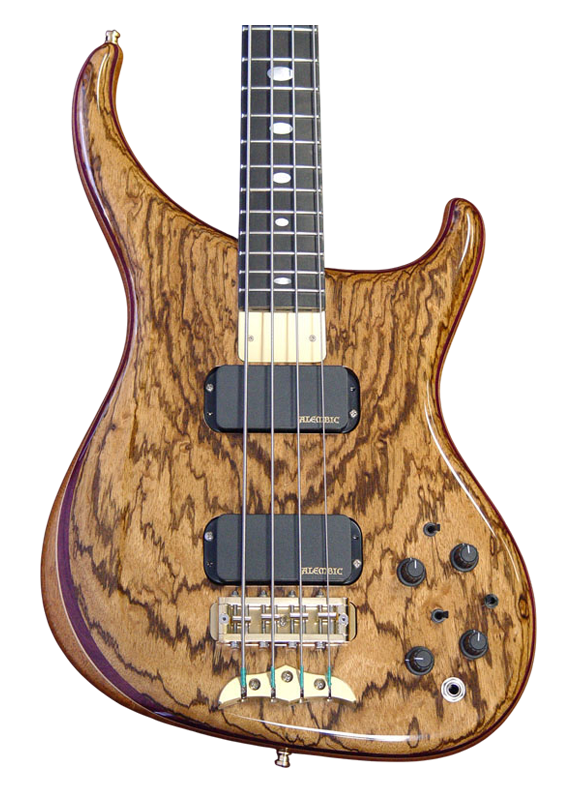

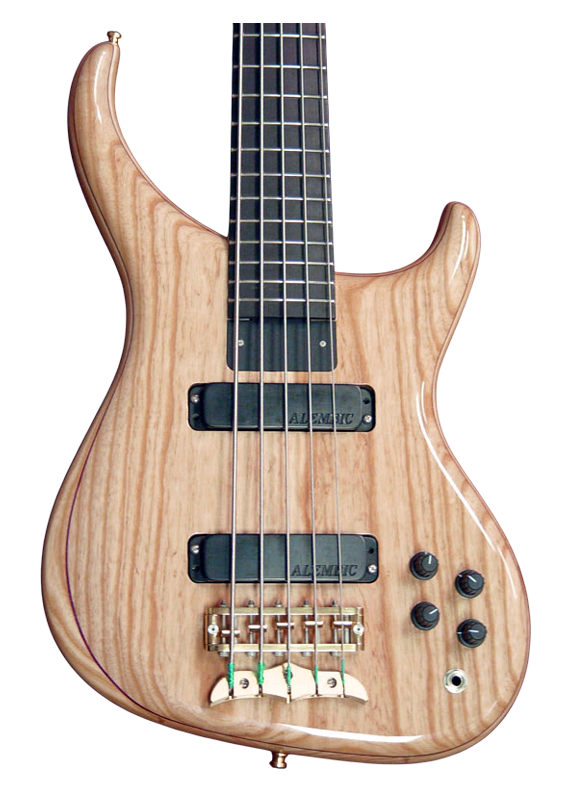

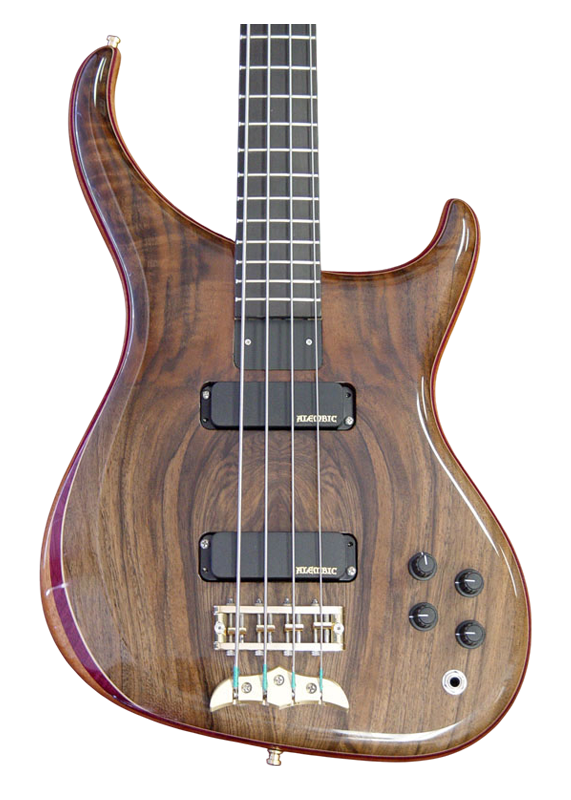

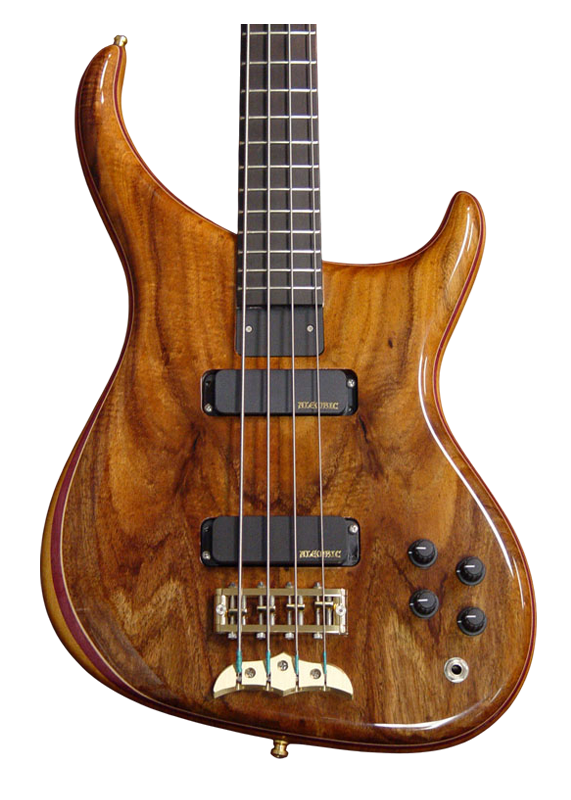

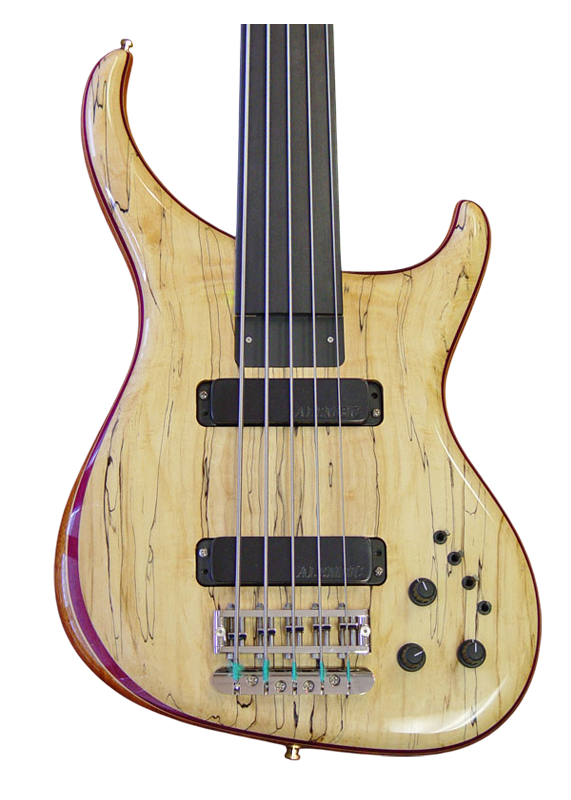

Orion Examples

ABOUT THE ORION BASS

With its graceful sweeping curves, the Orion calls to be played. Answer it, and your musical life will never be the same. You’ll find a comfortable friend in the Orion’s handcarved body with your choice of seven different woods for the top.
 Active electronics bring true Alembic tone to the Orion. You won’t believe how effortlessly the Orion responds to your touch, easily reproducing even the most subtle fingering techniques. A simple but effective 2-band EQ with bass and treble controls that cut and boost provide the flexibilty of tone. By cutting treble and bass, the mids are more present. The electronics cavity is shielded with a silver conductive paint that lasts and lasts without flaking or breakdown.
 Set neck construction gives the Orion a warm, well-defined midrange response. The cross-grained Maple neck is supported by two dual truss rods that adjust at the body. The neck has a comfortable shallow “C” shape and complete access to upper frets. We rub out our high gloss polyester finish to an impossibly smooth satin touch on the back of the neck - not a chance your fretting hand will stick.
 Even though the Orion is among our more affordable offerings, it still features the same Ebony fingerboard, solid brass machined hardware, and adjustable nut as our most expensive custom instruments. Like all Alembics, the Orion is entirely hand built start to finish in our shop in Rohnert Park, California.

Red alchemical symbol for the Spirit of Wood

ORION SPECIFICATIONS

FEATURE 4-string 5-string 6-string
Scale length 34 in 34 in 34 in
Set neck 3-piece Maple with 2 Walnut pinstripes 5-piece Maple with 4 Walnut pinstripes 5-piece Maple with 4 Walnut pinstripes
Fingerboard Ebony, no inlays Ebony, no inlays Ebony, no inlays
Nut width 1.625 in 1.875 in 2.200 in
24th fret width 2.360 in 2.930 in 3.560 in
Peghead Orion 4 Orion 5 Alembic Cone 6
Truss rods dual, body adjust dual, body adjust dual, body adjust
Top Flame Maple or any standard wood Flame Maple or any standard wood Flame Maple or any standard wood
Body material Mahogany Mahogany Mahogany
Sandwich Flame Maple, Purpleheart, Mahogany Flame Maple, Purpleheart, Mahogany Flame Maple, Purpleheart, Mahogany
Body depth 1.65 in 1.65 in 1.65 in
Finish Polyester gloss with satin neck Polyester gloss with satin neck Polyester gloss with satin neck
Pickups Alembic MXY 4 Alembic MXY 56 Alembic MXY 56
Controls volume, pan, bass, treble, mono output volume, pan, bass, treble, mono output volume, pan, bass, treble, mono output
Tailpiece Solid brass, bird shape Solid brass, bird shape Solid brass, bar shape
Nut height adjustable solid brass height adjustable solid brass height adjustable solid brass
Machine heads Gold Alembic-Gotoh Gold Alembic-Gotoh Gold Alembic-Gotoh
Average weight 10 pounds 11 pounds 12 pounds
Overall dimensions 13" x 46" 13" x 45.75" 13" x 47
Origin 100% Made in Rohnert Park, CA USA 100% Made in Rohnert Park, CA USA 100% Made in Rohnert Park, CA USA
